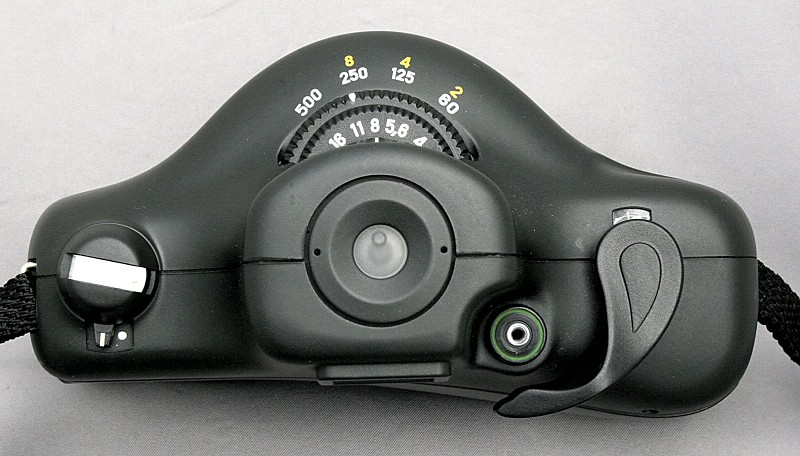

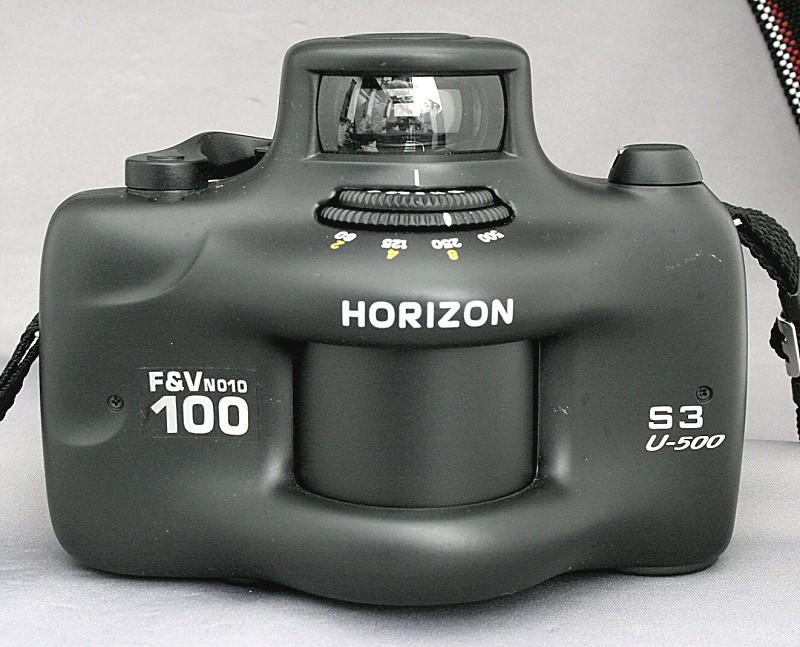

The Horizon S3 U-500 is one of a series of S3 panoramic cameras. The S3 U-500 has a dual-speed lens swing which is switched by the lever below the film-rewind crank. On the slow swing, shutter speeds are 1/8 to 1/2 second, and on the fast swing, 1/60 to 1/500 second. Two concentric disks, one below the other, under the viewfinder, set the aperture and shutter speed respectively. The lens is the MC 2.8.28 MG. There is a spirit level on the top of the camera that can be seen in the lower part of the viewfinder when composing the picture. The complete kit consists of the camera, a nylon case, a hand grip and three filters.
